Starting a three-phase motor is never as simple as flipping a switch. Large motors draw heavy current at startup, and that sudden surge can strain cables, reduce voltage stability, and shorten equipment life. This is exactly why engineers often ask what is star delta starter and why it remains widely used in industrial setups.
A star delta starter provides a controlled method of starting induction motors. Instead of applying full voltage instantly, it reduces stress during startup and then allows normal operation. Understanding why star delta starter is used helps explain its popularity in factories, pumping stations, and commercial facilities. Its balanced design makes it a reliable and practical solution for many motor-driven systems.

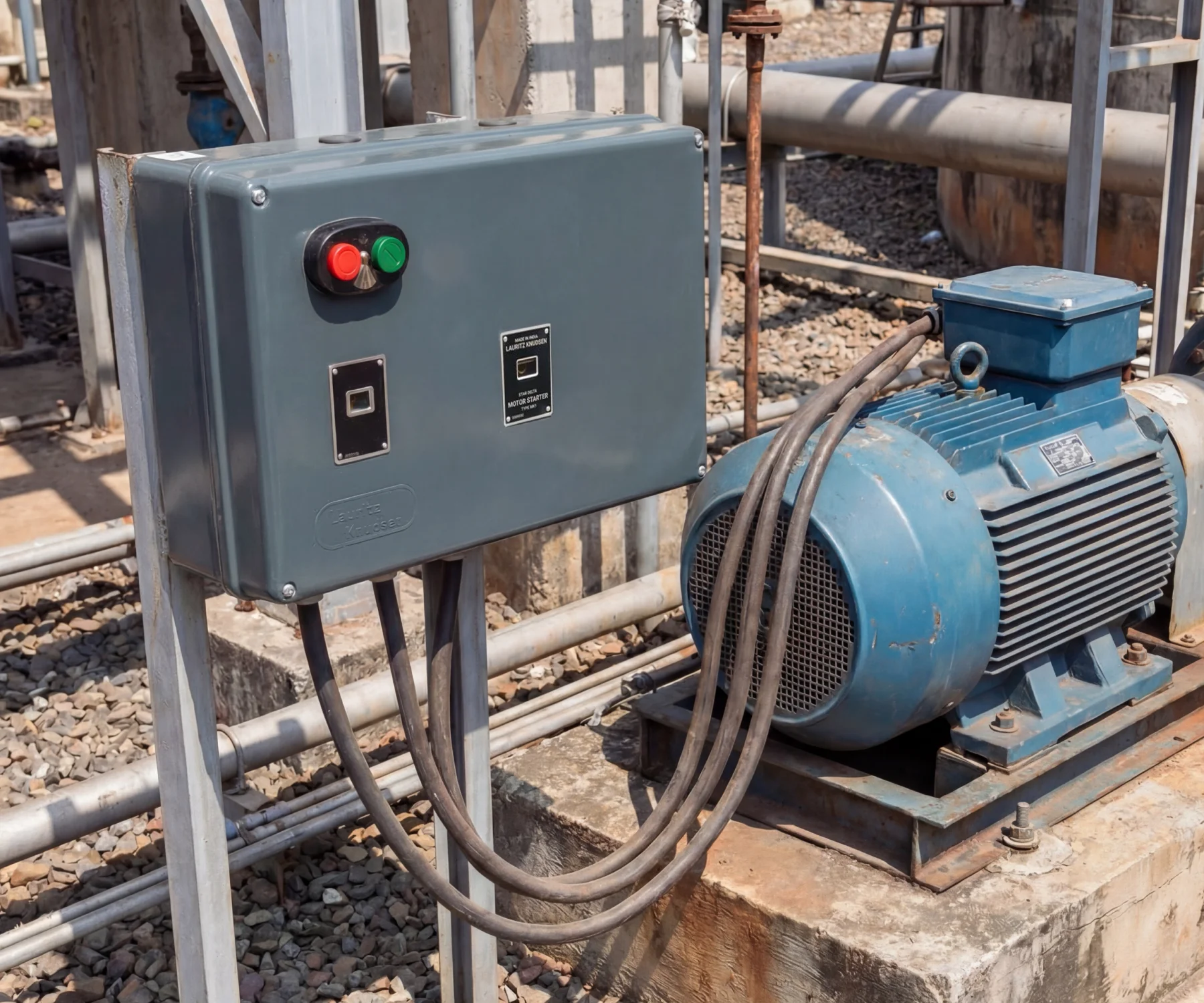

What is star delta starter? Think of it as a reduced-voltage motor starting method. It initially connects the motor windings in star configuration to lower starting current and then shifts to delta configuration for normal running.
The function of star delta starter is to limit inrush current while still allowing the motor to reach rated speed smoothly. This method protects both the motor and the power supply network. Engineers choose this system because of its simplicity and reliability. In simple terms, it provides a balanced solution between direct-on-line starting and more advanced electronic soft starting systems.
To explain how does a star delta starter work, the process begins with reduced voltage in star mode and later shifts to full voltage in delta mode. This transition is automatic. The staged operation protects the motor and electrical system while ensuring smooth acceleration and controlled startup performance.
At startup, the motor windings connect in a star configuration. This reduces voltage across each winding to approximately 58 percent of the supply voltage. Lower voltage means lower current draw. This stage explains the early phase of how does a star delta starter work. Reduced current minimizes electrical stress. Because star mode provides only about 33% of the motor’s rated torque, the starting torque is very low, which is a limitation and not a protective feature, meaning some loads may not start under star connection.
The key reason why star delta starter is used is current reduction. When voltage decreases in star mode, the starting current drops significantly. This protects transformers, cables, and switchgear from overload conditions. Reduced starting torque also lowers mechanical shock. By controlling current during the most demanding moment, the starter ensures smoother motor acceleration and longer equipment life in industrial and commercial electrical installations worldwide today.
The transition occurs when the motor reaches sufficient speed and torque (usually 50-60% of rated torque), often corresponding to a preset time rather than an exact %, because no speed feedback exists in standard star–delta starters
The star contactor disengages and the delta contactor engages. This sequence explains how does a star delta starter work during switching. Proper timing prevents overlap between contactors. The transition must be clean to avoid electrical faults. Automatic switching ensures safe, consistent motor startup without operator intervention.
After switching to delta, the motor receives full line voltage. Now it delivers rated torque and operates normally under load. This final phase completes the function of the star delta starter. The motor continues running in delta mode until it is stopped. Star–delta switching is not inherently smooth open-transition designs introduce a brief supply interruption that can cause a current spike, torque dip, and occasional mechanical shock. A genuinely smooth changeover requires a closed-transition star–delta starter, which is less common due to added cost and complexity.
There are different type of star delta starter designs available depending on control requirements and automation level. Each type serves the same purpose but differs in wiring and operation style. Understanding the right type of star delta starter helps ensure safe installation and reliable motor performance in industrial systems.
Manual starters require operator control during switching. The operator initiates star mode and manually changes to delta mode. This type of star delta starter is simple and economical. However, it requires attention during operation. Manual control increases the possibility of timing errors. It is typically used in small-scale industrial environments where automation is not necessary and motor operation is supervised closely.
Automatic starters use timers and contactors to handle changeover. This type of star delta starter is widely used in industries because it removes human error. The timer ensures proper delay before switching to delta. Automatic control improves reliability and safety. It is suitable for medium and large motors requiring consistent startup performance without constant supervision in industrial applications worldwide today.
Semi-automatic versions combine manual control with timer-based switching. Operators initiate startup, but the timer controls the transition. This provides better safety than purely manual systems. It balances cost and automation. This option is suitable where moderate control is required. It offers improved performance compared to manual systems while maintaining affordability in small industrial environments.
The application of star delta starter is common in systems where high starting current must be reduced. Its balanced startup makes it ideal for industrial and commercial operations. Understanding the application of star delta starter helps in selecting the right starting method for motors.
In pumping systems, gradual startup prevents pressure surges. This is a major application of star delta starter. Smooth acceleration reduces mechanical stress on pipelines and couplings. It improves equipment lifespan. Pumping systems benefit from reduced starting current and improved reliability. This method ensures stable motor performance in water treatment and irrigation installations.
Compressors require controlled startup to prevent torque shocks. Reduced current limits mechanical strain. This is another key application of star delta starter in industrial setups. Stable startup protects moving parts. Reduced voltage dips help maintain overall electrical system stability. Controlled acceleration improves operational reliability in compressed air systems and industrial refrigeration equipment.
Conveyors benefit from smooth motor acceleration. Sudden jerks can damage belts and gears. Using this starter prevents abrupt movement. It improves mechanical lifespan. Conveyor applications highlight why star delta starter is used in material handling systems. Reduced mechanical shock improves operational safety and reliability in production facilities and logistics centers worldwide today.
Large fans and air handling units draw heavy starting current. This explains why star delta starter is used in commercial buildings. It stabilizes electrical load during startup. Reduced current prevents voltage dips. HVAC systems require smooth operation to ensure comfort and efficiency. Controlled startup protects both motor and supply network.
Understanding how to connect star delta starter requires correct wiring of contactors, overload relay, and timer. Proper installation ensures safe operation. Learning how to connect star delta starter correctly prevents faults and ensures smooth transition between star and delta configurations in motor control systems.
Connect supply lines to the main contactor. Ensure proper phase identification. Secure connections tightly to avoid loose wiring. Proper grounding is essential. This is the first step in learning how to connect star delta starter safely. Correct power connection ensures stable operation and prevents electrical hazards during startup and running conditions in industrial electrical systems worldwide today.
Wire the star and delta contactors according to motor terminal configuration. Ensure interlocking between contactors to prevent simultaneous operation. Correct wiring prevents short circuits. This stage is crucial when understanding how to connect star delta starter safely. Interlocking improves safety and ensures smooth switching between star and delta modes.
Install and set the timer according to motor specifications. Adjust switching delay properly. Connect overload relay for protection. Proper timing ensures smooth transition. This final step ensures reliable startup and safe operation. Correct configuration completes installation and ensures effective functioning of the starter in industrial motor control systems worldwide safely today.
There are many busbar trunking system advantages that improve efficiency and safety. These systems improve electrical performance. Benefits include flexibility, safety, and scalability. Understanding busbar trunking system advantages helps industries improve electrical infrastructure. These systems ensure reliable and efficient power distribution in modern electrical infrastructure worldwide safely today.
Busbar systems reduce energy loss. They improve efficiency. Efficient power distribution improves performance. These systems improve reliability. Efficient systems improve electrical performance. They support safe operation. Improved efficiency reduces operational costs. Busbar systems improve power distribution performance worldwide safely today.
These systems save space. Compact design improves installation efficiency. Space-saving systems improve infrastructure design. Compact systems improve usability. Space-saving design improves flexibility. These systems improve electrical infrastructure. Compact design improves performance worldwide safely today.
Busbar systems improve safety. Protective design reduces risks. Improved safety protects equipment. Safe systems improve reliability. Safety improves infrastructure performance. These systems ensure reliable operation worldwide safely today.
Understanding the advantages and disadvantages of star delta starter helps in selecting the right motor starting method. While it offers reduced current and mechanical protection, it also has certain limitations. Evaluating the advantages of star delta starter alongside its drawbacks ensures informed decision-making.
One of the major advantages of star delta starter is reduced starting current. It protects electrical systems and motors. Another advantage is lower mechanical stress. It is economical compared to advanced electronic starters. These advantages and disadvantages of star delta starter must be balanced during system selection.
One of the major advantages of star delta starter is reduced starting current. During startup, the motor windings receive lower voltage in star mode, which limits inrush current significantly. This protects cables, transformers, and switchgear from electrical stress. Lower current also reduces voltage dips in the supply system.
Another key benefit among the advantages and disadvantages of star delta starter is reduced mechanical shock. Gradual acceleration minimizes sudden torque impact on shafts, belts, and couplings. This controlled startup extends equipment lifespan, reduces maintenance requirements, and improves reliability in industrial systems operating with frequent motor starts.
Compared to soft starters or variable frequency drives, the star delta method is economical. Equipment cost is moderate, and maintenance remains simple. Because of this affordability, many industries prefer it for medium-capacity motors. The balance between performance and cost makes it a practical motor starting solution.
A limitation among the advantages and disadvantages of star delta starter is reduced starting torque. Heavy-load motors may struggle. It also requires complex wiring compared to DOL starters. Switching disturbance can occur during transition. Despite the star delta starter advantages, it is not suitable for all motor applications.
A common limitation within the advantages and disadvantages of star delta starter is reduced starting torque. Since voltage is lowered during star mode, torque also decreases. Motors driving heavy loads may struggle to accelerate properly. This makes the starter unsuitable for applications requiring high initial torque at startup.
Another drawback is more complex wiring compared to DOL starters. Additional contactors and timer circuits increase installation complexity. Incorrect wiring may cause faults or unsafe switching. Proper installation requires careful attention to interlocking and protection components to ensure safe motor startup and reliable operation.
During changeover from star to delta, a brief interruption may occur. If timing is incorrect, current spikes can appear. This switching disturbance may affect sensitive systems. Although manageable with proper settings, this limitation should be considered when evaluating the advantages of star delta starter for critical applications.
Understanding where star delta starter is used helps in choosing the right applications. It is commonly installed in industries requiring reduced starting current. Knowing where star delta starter is used ensures correct implementation for safe and reliable motor startup performance.
Manufacturing facilities use large motors in conveyors, mixers, and processing units. Controlled startup improves equipment lifespan. This explains where star delta starter is used frequently. Stable startup prevents voltage dips. Industries rely on it for reliable motor performance and system protection in heavy-duty production environments.
Commercial buildings with HVAC and pumping systems require stable electrical supply. This shows where star delta starter is used outside factories. Reduced current prevents disturbance to other equipment. Controlled startup supports stable building operation. It ensures safety and efficiency in commercial power systems worldwide today.
Irrigation pumps benefit from gradual startup. Sudden torque can damage shafts and pipelines. This demonstrates where star delta starter is used in rural installations. Controlled acceleration protects mechanical components. Reliable operation ensures consistent water supply in agricultural fields and water distribution systems safely.
Also Read: Role of AC Drives and Soft Starters in Modern Fire and Ventilation Systems
The star delta starter continues to be a practical and dependable solution for motor starting in industrial and commercial environments. By reducing inrush current and mechanical stress, it improves equipment lifespan and protects electrical systems. Understanding its working, applications, and limitations ensures proper selection.
While newer technologies exist, this starter remains popular due to its simplicity and cost-effectiveness. When properly installed and maintained, it delivers reliable performance across many applications. For dependable electrical control solutions and high-quality motor starting equipment, professionals can explore trusted solutions from Lauritz Knudsen Electrical & Automation to ensure safe and efficient motor operations.
